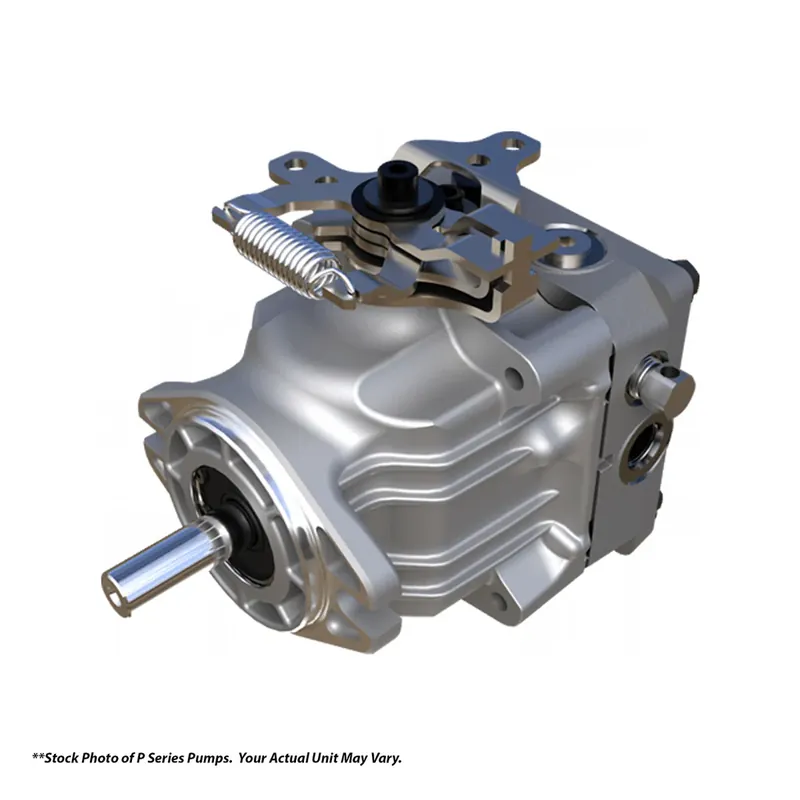

Limited Time Hydro-Gear – PC-NNFF-5B1X-AXXX – PC Hydraulic Pump

PC SERIESPUMPS

INDUSTRY WORKHORSE, UNMATCHED EFFICIENCY, AND CONTROL.

Hydro-Gear’s commercial piston pumps are smooth and efficient. High-performing and maintenance-free, they feature fixed-displacement charge pumps and check or shock valves to provide an infinitely variable speed range between zero and full displacement in both forward and reverse modes of operation. With a wide range of options, find the perfect piston pump for your unique application.

• Return-to-neutral device for smooth de-stroke capability
• Most industry-standard shaft options for greater adaptability
• Tandem pumps for multi-circuits
• Auxiliary pumps to provide power to additional functions
• Cooling fan when additional cooling is desired

SPECIFICATIONS

DISPLACEMENT

• 37 in3/rev [6.1 cc/rev]

INPUT SPEED

• -MAX HI-IDLE [NO LOAD] – 3600 rpm
• -MIN [LOADED] – 1800 rpm

SYSTEM OPERATING PRESSURE

• CONTINUOUS – 750 psi [51 bar]
• INTERMITTENT – 1750 psi [120 bar]
• PEAK – 2500 psi [172 bar]

PUMP PERFORMANCE

• @ 2400 RPM/ 1000 PSI – 3.6 gpm [13.6 I/min]
• @ 3000 RPM/ 1000 PSI – 4.5 gpm [17.0 I/min]
• @ 3600 RPM/ 1000 PSI – 5.4 gpm [20.4 I/min]

CONTROL TORQUE REQ’D TO STROKE PUMP

(-20° EXTERNAL STROKE ANGLE)

• LB-IN/1000 PSI [NM/70 BAR] – 75 lb-in [8.5 Nm]
• LB-IN/500 PSI [NM/35 BAR] – 55 lb-in [6.2 Nm]

PUMP OIL TEMPERATURE

• MAXIMUM INTERMITTENT – 230 F° [110 C°]
• NORMAL OPERATING RANGE: -10-200 F° [-23-93 C°]

FLUID VISCOSITY LIMITS @230 F° [110 C°]

• OPTIMUM – 70 SUS [13 Cst]
• MINIMUM – 55 SUS [9 Cst]
