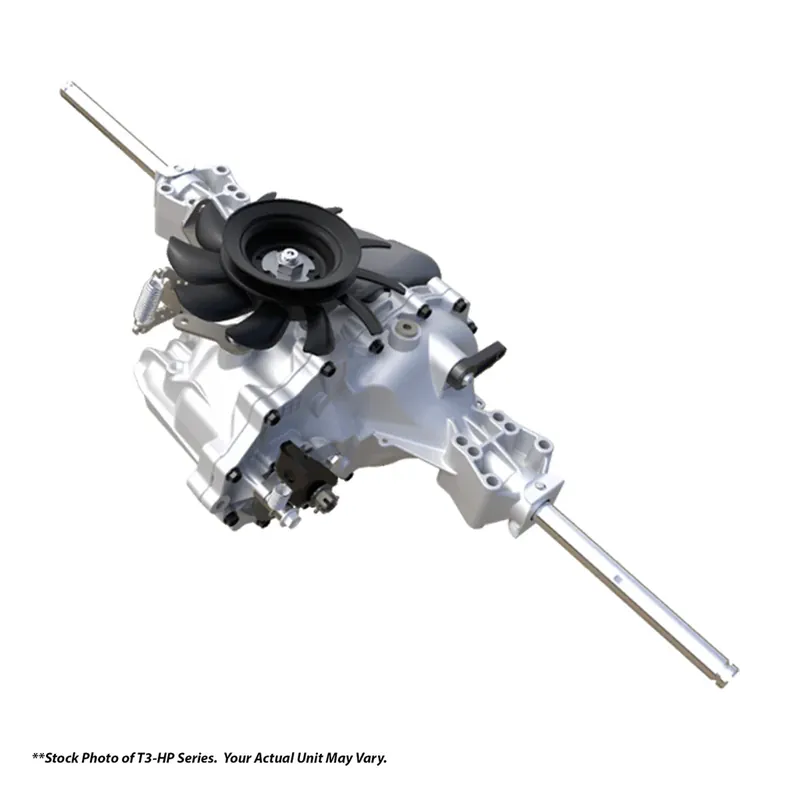

Genuine Hydro-Gear – T3-BHMF-5X3C-1DB5 – T3 Hydrostatic Transaxle

T3-HD^™

OPTION OF A MANUALLY-OPERATED, FULL-LOCKING DIFFERENTIAL.

Boasting the highest torque in its class, the integrated design of the T3™ also gives you the option of a manually operated, full-locking differential (turn on when you need it, off when you don’t). Rugged, die-cast aluminum housings and maintenance-free design mean you get years of optimum performance. The infinite speed control gives you precise handling and the sturdy ¾” axle delivers reliable power when you need it.

• Optional full-locking differential
• Sturdy 3/4 in axle
• Infinite speed control for precise handling
• Maintenance-free design for ease of use

SPECIFICATIONS

OVERALL TRANSAXLE REDUCTION

• 27:1
• 70:1
• 91:1

INPUT SPEEDS

• MAXIMUM HI-IDLE (NO LOAD) – 3000 rpm
• MINIMUM (LOADED) – 1800 rpm

OUTPUT TORQUE

• 140 lb-ft [189 Nm]
• 150 lb-ft [203 Nm]
• 160 lb-ft [216 Nm]

CONTINUOUS INTERMITTENT

• 230 lb-ft [311 Nm]
• 290 lb-ft [393 Nm]
• 300 lb-ft [406 Nm]

AXLE SHAFT DIAMETER

• 75 in [19.05 mm]

AXLE SHAFT END OPTIONS

• Keyed or DD

PARKING BRAKE TYPE

• External Disc

WEIGHT OF UNIT

• 28 lb [12.7 kg]
