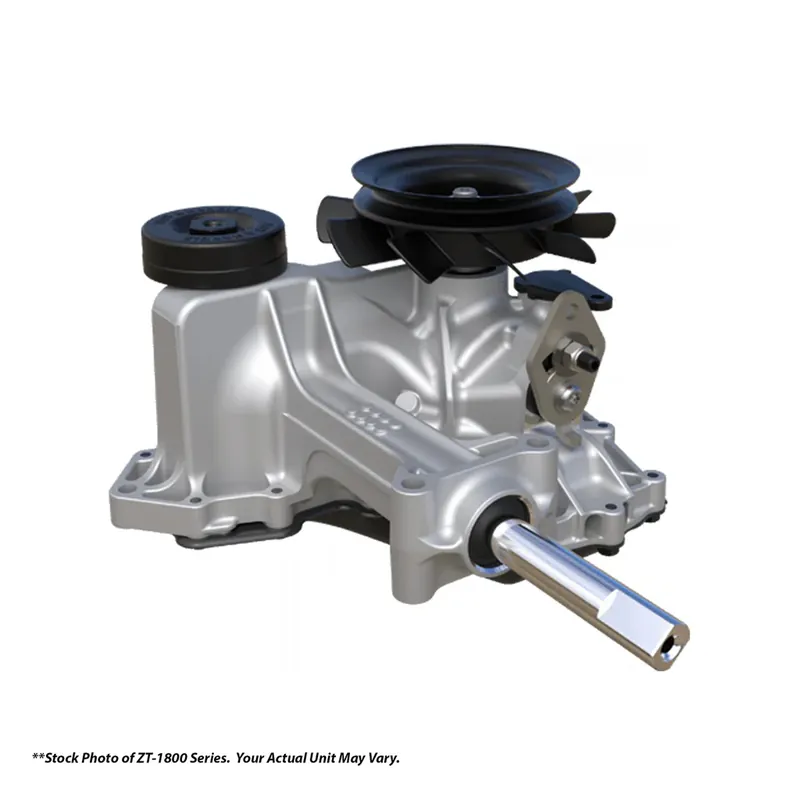

Brand New Hydro-Gear 1910-1005R Transaxle ZT-1800 for Hustler Dash 606994

ZT-1800^™

OUR MOST COMPACT INTEGRATED TRANSAXLE.

Don’t underestimate the power of our lightest and most compact integrated transaxle. The ZT-1800™ boasts a maintenance-free design, a reliable and efficient 6cc pump and 10cc motor, a durable ¾” axle. It delivers proven performance that you’ve come to expect from Hydro-Gear’s residential line.

• Hydro-Gear’s lightest and most compact unit
• Maintenance-free design
• Proven performance in a compact package
• Durable 6cc pump & 10cc motor
• Perfect fit for vehicles weighing up to 667 lbs

SPECIFICATIONS

• PUMP DISPLACEMENT – 37 in3/rev [6 cc/rev]

• MOTOR DISPLACEMENT – 61 in3/rev [10 cc/rev]

• INPUT SPEED
  MAXIMUM HI-IDLE (NO LOAD) – 3000 rpm
  MINIMUM (LOADED) – 1800 rpm

• OUTPUT TORQUE – up to 100 lb-ft [up to 136 Nm]

• SPEED – up to 6 mph [up to 10 kph]

• GROSS VEHICLE WEIGHT – up to 667 lbs [up to 302 kg]

• AXLE SHAFT DIAMETER – 75 in [19.05 mm]

• AXLE SHAFT END OPTIONS – DD

• WEIGHT OF UNIT – 18 lbs [8.2 kg]
